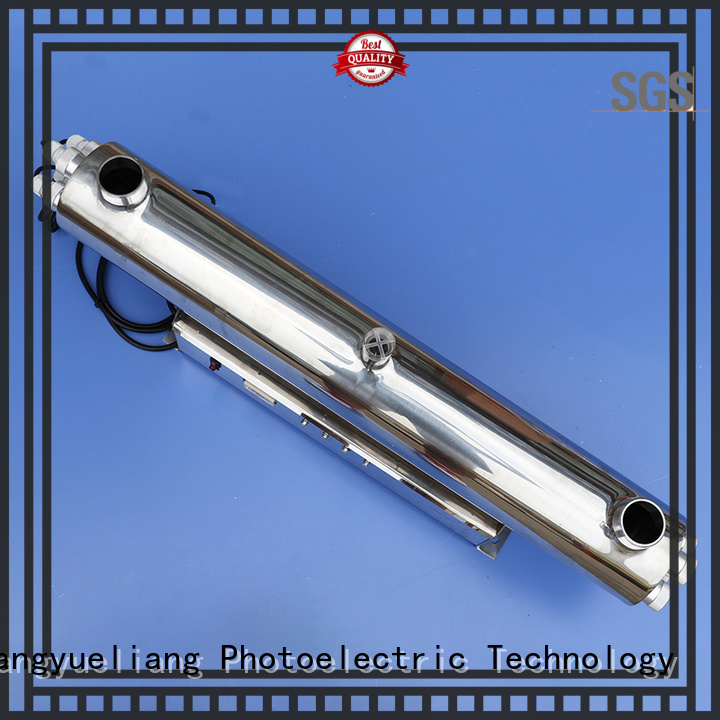

High Power stainelss steel uv water sterilizer is made of sanitary level inox SS304 (316 if requried) with inside polish, good apperance and perform well in water sterilization at the water flow of 5~150 ton per hour. (22GPM-666GPM)
Model | Power | Waterflow | Waterflow | Specification | Inlet/Outlet | Rated Lifespan/ hours | |
Watt | Ton/ hour | GPM | mm | Flange | Standard | Coated Long-life | |
High Power Stainless steel UV Water Sterilizer | |||||||
LYL/B-UV2*40W | 40W*2 | 5.5 | 24 | 906*101*201 | G1’’ | 10000 | 13000 |
LYL/B-UV3*40W | 40W*3 | 8 | 35 | 906*159*359 | DN40 | 10000 | 13000 |
LYL/B-UV4*40W | 40W*4 | 12 | 53 | 906*159*359 | DN50 | 10000 | 13000 |
LYL/B-UV5*40W | 40W*5 | 15 | 66 | 906*219*420 | DN65’ | 10000 | 13000 |
LYL/B-UV2*80W | 80W*2 | 12 | 53 | 906*101*271 | DN50 | 10000 | 13000 |
LYL/B-UV3*80W | 80W*3 | 20 | 88 | 906*159*359 | DN65 | 10000 | 13000 |
LYL/B-UV4*80W | 80W*4 | 25 | 110 | 906*159*359 | DN65 | 10000 | 13000 |
LYL/B-UV2*120W | 120W*2 | 15 | 66 | 1220*159*359 | DN65 | 10000 | 13000 |
LYL/B-UV3*120W | 120W*3 | 25 | 110 | 1220*159*359 | DN80 | 10000 | 13000 |
LYL/B-UV5*120W | 120W*5 | 45 | 198 | 1220*159*359 | DN80 | 10000 | 13000 |
LYL/B-UV3*150W | 150W*3 | 35 | 155 | 1630*159*359 | DN80 | 10000 | 13000 |
LYL/B-UV4*150W | 150W*4 | 50 | 220 | 1630*219*419 | DN100 | 10000 | 13000 |
LYL/B-UV5*150W | 150W*5 | 60 | 260 | 1630*219*419 | DN100 | 10000 | 13000 |
LYL/B-UV6*150W | 150W*6 | 80 | 352 | 1630*219*419 | DN100 | 10000 | 13000 |
LYL/B-UV7*150W | 150W*7 | 100 | 440 | 1630*219*419 | DN100 | 10000 | 13000 |
LYL/B-UV9*150W | 150W*9 | 125 | 550 | 1630*273*473 | DN150 | 10000 | 13000 |
LYL/B-UV10*150W | 150W*10 | 150 | 660 | 160*325*525 | DN150 | 10000 | 13000 |
* No any chemical
* No change at the taste, smell and color of the water
* Sterilization efficiently
* Cost saving
* Easy maintenance
* No second pollution
